The control-panel equipment that completes the loop.
A field sensor needs a recorder, controller, or isolator to complete the process loop. We supply the panel-side equipment too: paperless recorders, indicators, totalisers, controllers, signal isolators, and signal generators.

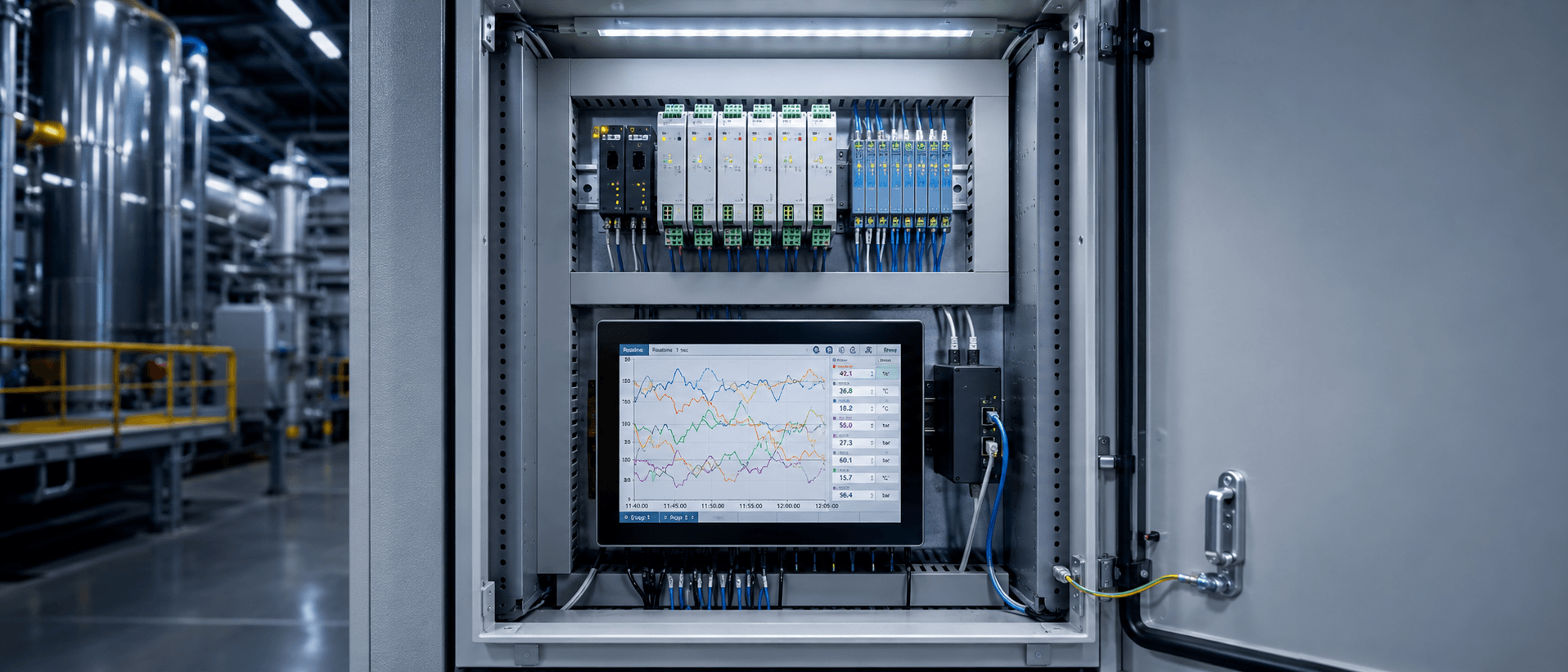

The equipment inside the control cabinet.
Field instruments are only half a process loop. The other half lives in a control panel: a recorder logging the data for compliance, an indicator showing the live value at the local operator station, a controller closing the loop, an isolator breaking the ground loop that ruins the reading.
We supply the panel side. The paperless recorders log to SD card and can stream to a remote-monitoring app personalized to your site at the same time, which means compliance reporting is often a one-click export rather than a manual reconstruction.
Six families that fill the panel.
- 01
Paperless recorders
Continuous data logging for compliance, batch records, audit trails
Touchscreen, SD card and Ethernet export, up to 36 channels
- 02
Process indicators
Single-channel local readout of a 4 to 20 mA signal
Panel-mount; user-scaled; relay outputs for setpoint
- 03
Totalisers
Flow totalisation, batch counts, custody-transfer integration
Pulse-input; non-resettable counter for legal-metrology duty
- 04
PID / fuzzy controllers
Local loop control where a full DCS is overkill
Auto-tune; cascade and ratio modes; relay or SSR output
- 05
Signal isolators
Galvanic separation between field and DCS; ground-loop break
1-channel and multi-channel rail-mount; loop-powered options
- 06
Signal generators
Calibration source for loop testing and commissioning
Portable; outputs 4 to 20 mA, mV, RTD simulation
The shared spec floor.
- Mounting
- Panel-mount (48mm to 192mm), DIN-rail, or wall-mount cabinet
- Communication
- Modbus RTU (RS485), Modbus TCP, OPC-UA on premium models
- Power supply
- 24 VDC standard, 90 to 240 VAC universal on most models
- Display
- Mono LCD, colour TFT, or touchscreen, depending on model
- Data storage
- SD card and Ethernet export; sync via the remote-monitoring app
- Certification
- CE, RoHS; FDA 21 CFR Part 11 compliance for recorder models
