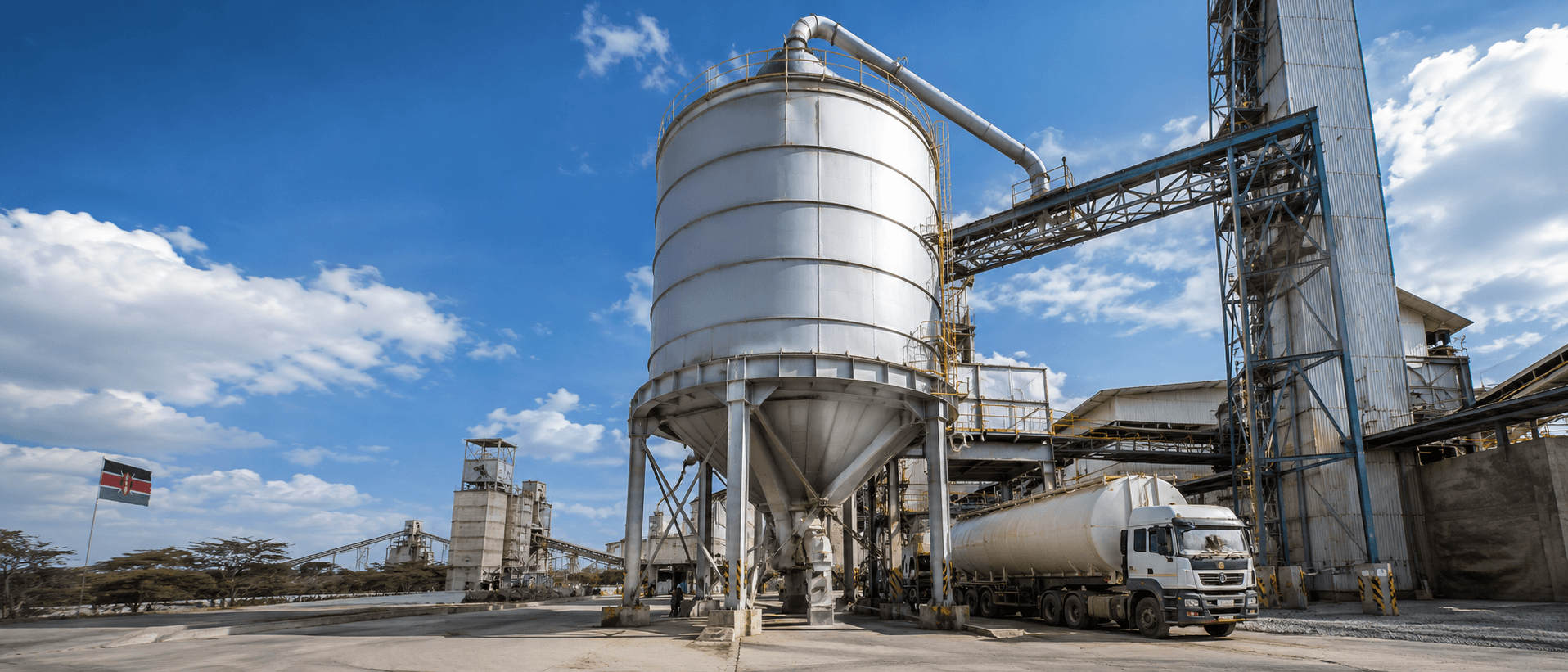

Large-scale bulk storage, from a single cement silo to a powder-handling array.
Steel silos for cement, powders, and food ingredients. Pneumatic-conveying compatible, dust-collector ready, radar level monitoring on every install. Sized between 10 and 1000 metric tonnes per silo.
The structural-engineering end of silo work.
Industrial bulk silos are different from grain or feed because the material is heavier, the cycle is faster, and the discharge has to be reliable enough that a tanker truck below never waits. The hopper angle, the fluidising pad layout, and the dust-collector geometry all change with the material.
We design the structure to Eurocode 3, weld to AWS D1.1, and erect on-site for the larger units. Drawings and engineering calculations are supplied with every quote.
Pneumatic fill · dust-collector ready · radar level default
The standard build.
- Material
- Carbon steel or hot-dip galvanised, painted finishes on request
- Capacity range
- 10 to 1000MT
- Diameter range
- 3 to 14m
- Hopper angle
- 60° standard for cement; sized to material angle of repose
- Top fittings
- Pneumatic fill line, pressure relief, dust collector mount
- Bottom fittings
- Bulk loading spout, slide gate, fluidising pads for cement
- Level monitoring
- Continuous radar plus high/low setpoint paddle, default
- Access
- Caged ladder with intermediate platforms, top safety rail
- Lead time
- 10 to 16 weeks ex-works, plus on-site erection
Designed to Eurocode 3, welded to AWS D1.1 — discharge reliable enough that the tanker below never waits.
From a single 10 MT cement silo to a 1,000 MT array.
Standard for cement; otherwise sized to angle of repose.
3 to 14 m, carbon steel or hot-dip galvanised.
What goes inside them.
Cement and lime
Bulk cement silos for ready-mix yards, block plants, and infrastructure projects. 60° hopper, fluidising pads, pneumatic fill.
Powder handling
Industrial powder ingredients (fly ash, gypsum, soda ash). Dust-collector mount standard on top.
Food ingredients
Bulk flour, sugar, starch storage for industrial bakeries and food processors. Galvanised, food-grade-compatible coatings on the bottom cone.
Engineering deliverables · every quote
“Drawings and engineering calculations are supplied with every quote.”
